Learning from real world data (ECG Heartbeat Categorization) as anomaly detection using HTM

[marty1885]

I came across the ECG dataset on Kaggle and thought that I might be able to approach this as a anomaly detection problem. The dataset consist of data in 5 categories. 1 for normal ECG and 4 abnormal; but since I’m approaching it as detecting anomaly, I’ll be training on the “normal” set of data only and using the anomaly score to decide weather a given ECG is “normal” or not.

The setup is simple. Read data from the CSV file (ptbdb_normal.csv), feed them into a scaler encoder then send the SDR into a Temporal Memory to learn the pattern of a normal heartbeat. Then load data from a test set (ptbdb_abnormal.csv and a parts of ptbdb_normal.csv that is not used during training). Run each ECG record trough the TM and find how many anomaly it contains. Then all record containing large amount of anomalies are considered abnormal.

The results are… interesting. I can get at most 65% of all abnormal record recolonized as abnormal(ie. true positive) while 10% of normal record recolonized as abnormal(false positive). I consider this a good result as this is a classification problem; not anomaly detection. However seems that HTM can be very sensitive to hyper-parameters. Set the PermanenceIncrement off by 0.05 and the true positive rate drops by 20%. Same thing setting ConnectedPermanence too low/high. It can be really frustrating tuning the hyper parameters.

Result

And there is the result

Source code: https://github.com/marty1885/heartbeat-htm/tree/master
(Please forgive for being lazy for not writing CMake/build script )

Happy HTM hacking.

This is actually my presentation for a introductory class to ML in my collage. But I decided to also share my experiences and results here.

[rhyolight]

This is great! Thanks for sharing!

@marty1885

It can be really frustrating tuning the hyper parameters.

I suggest you use getScalarMetricWithTimeOfDayAnomalyParams() like NAB does:

numenta/NAB/blob/master/nab/detectors/numenta/numentaTM_detector.py#L54-L60

These are the best-tuned params we have found for anomaly detection on generic streaming scalar data. (Although the “time of day” part will not help you and you can remove that encoder entirely).

[marty1885]

Thanks! I tried the values from getScalarMetricWithTimeOfDayAnomalyParams. But they don’t work as well as the ones I ended up with.

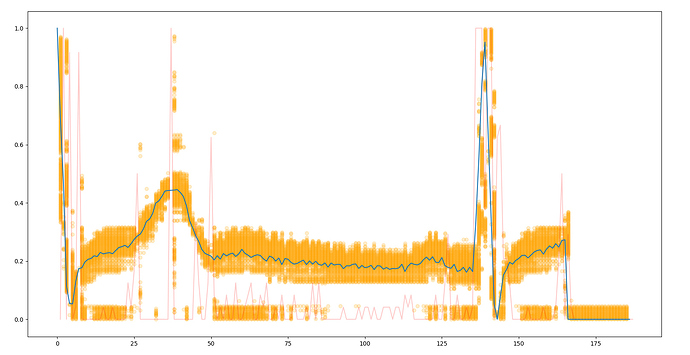

Also, I tired to visualize what HTM is predicting. Seems that sometimes HTM is predicting nothing (The gap on the left side of the graph) (The blue line is the value feeded to HTM, orange dots are HTM’s predictions, the red line is the anomaly score) (parameter: SDR length = 512, density = 4.6%)
Is there any way to fix this?

[Jonathan_Mackenzie]

If you want to optimise hyperparameters for your task/dataset, I wrote a script to do it here using hyperopt/hyperas: https://github.com/JonnoFTW/htm-models-adelaide/blob/master/engine/vs_model/optimize_htm.py

The script should be simple to modify for your use case. You can even do it in a distributed fashion if you have access to many different machines.

[thanh-binh.to]

@marty1885 I am interested too in the testing with this dataset. I plot this data “ptb_normal.csv” but this data is so noisy, so that I do not find any time windows of this data which has a good QRST like your blue curve.
Did you have any preprocessing before? Thanks

[marty1885]

@thanh-binh.to

I do not find any time windows of this data which has a good QRST like your blue curve

No. The data I have shown is in ptbdb_normal.csv. It should be the around 21th entry in the CSV.

–
I haven’t release the visualizing code yet. It is very ugly now and hacky.

[thanh-binh.to]

@marty1885: when I load this csv file so I get data as a (4046 x 188)-matrix. As I understood this data, each column describes a ECG with 4046 recorded time points. For my eyes, the heart beats are not easily found when I plot them. I am not sure if we talk about the same thing.
Could you please plot the 1st column for first 100 time points? Thanks

[marty1885]

@thanh-binh.to

As I understood this data, each column describes a ECG with 4046 recorded time points

The exactly opposite is true. Each ECG records contain 187 samples (the last one being the category.). And in the file contains 4046 such records. Unlike mathematics, computers tend to be row-majro. The direction which indices of matrices being applied are reversed.

Sure. Here you go.

[thanh-binh.to]

@marty1885 thanks

[thanh-binh.to]

@rhyolight: I have just looked at the code of Numenta NAB as you mentioned here:

numenta/NAB/blob/master/nab/detectors/numenta/numenta_detector.py

and at the line 98-105:

if self.useLikelihood:
      # Compute log(anomaly likelihood)
      anomalyScore = self.anomalyLikelihood.anomalyProbability(
        inputData["value"], rawScore, inputData["timestamp"])
      logScore = self.anomalyLikelihood.computeLogLikelihood(anomalyScore)
      finalScore = logScore
    else:
finalScore = rawScore

I understood the function anomalyProbability() provides likelihood, and anomalyScore should be (1.0 - likelihood);
My questions:

1. Am I right here?
2. Why Is the logScore provided by AnomalyLikelihoodAlg comparable to rawScore? I understood anomalyScore should be comparable to rawScore.

Could you please explain me? Thanks

[rhyolight]

Both the anomaly score and anomaly likelihood are between 0.0 & 1.0. rawScore is the anomaly score. The anomaly likelihood algorithm needs it to compute the likelihood. The anomalyScore poorly named, I think it represents a container for scores related to anomalies. Inspect it to see what properties it gives you. Some better docs here.

[thanh-binh.to]

@rhyolight: In my experiments, if I use

@thanh-binh.to

anomalyScore = self.anomalyLikelihood.anomalyProbability()

for testing with sinus wave,
then the anomalyScore increases into 0.9, even by perfect 1-step-prediction.
What should be wrong here?

[thanh-binh.to]

I checked again and again, and pretty sure that we have to change the line 103 to
finalScore = 1 - logScore
so it works correctly…

[marty1885]

Hi all.
I just uploaded the slides for my presentation. Feel free to take it for any purpose if you find it useful.

Intro to Machine Learning - Hierarchical Temporal Memory

[marty1885]

@thanh-binh.to
Do you have any luck with classifying ECG? I truly think 65% accuracy can be improved. But I don’t find a way to make that happen.

[thanh-binh.to]

@marty1885 : i am sure, that i can improve it. I am looking for more classes of anomalies, different illness.

[thanh-binh.to]

@marty1885 i have just looked at your Source Code and am not sure, if your calculation of success rate is correct.
You accumulate the anomaly scores at every measuring points and compare them to a threshold (14).
Where does the value 14 komme from?
In my test, I train HTM with 100 first patterns, and after that test with the left data.
If I considering the classification for each ecg measuring point so I get success rat for detecting normal ecg over 65%
But if I calculating the prediction errors within a class so the success rate will be higher…,

[marty1885]

14 is an arbitrary value that I find (by brute-force) that gives me the best result. (The largest difference between true-positive and false-positive). I should have also put that into the hyper-parameter list.

I calculate the final accuracy of the model by how much ECG records are classified correctly versus the total amount of records.

[thanh-binh.to]

@marty1885: Now, I can improve the detection rate into 92.42%. For doing it, I use 300 first pattern for normal and abnormal ECG, then classify the left 14000 pattern in 2 databases.
I will test HTM for MNIST classification next week…

[marty1885]

@thanh-binh.to
That’s amazing. Can you share the code? I think that I can learn a lot from it.
